Superior TeleStacker Conveyor

Download Brochure

Established in 1997, the Superior TeleStacker Conveyor is pound-for-pound the strongest, safest and most productive telescopic stacker on the planet. Every square inch of steel is designed to carry more load, provide more stability, and move material at the lowest cost per ton

Key Features:

  • Chevron pulley ejects fugitive material for longer lasting pulleys and belting.
  • Sealing system maintains tight seal between belt and skirting for spillage free load zone.
  • Exterra primary cleaner eliminates unwanted fugitive material on belt.
  • Contact-free ultrasonic pile sensor is not affected by dust or debris.
  • Navigator return trainer constantly guides and centers the belt.
  • Slidetrack cable support system designed with no catch points and easy maintenance.

Superior TeleStacker Capacities & Sizes:

Capacities Conveyor Length
110’ 130’ 136’ 150’ 158’ 170’ 190’ 210’
500 TPH 36” 30” 30” 36” 36” 36”
800 TPH 36” 36” 36” 36” 36” 36” 36” 36”
1,000 TPH 36” 36” 36” 36” 36” 36” 36” 36”
1,200 TPH 42” 42” 42” 42” 42” 42”
1,500 TPH 42” 42” 42” 42” 42” 42”
1,800 TPH 48” 48” 48”
2,400 TPH 48” 48” 48”
3,200 TPH 54”
4,000 TPH 60” 60” 60”
5,000 TPH 72”



FD Auto Level Axle Configuration:

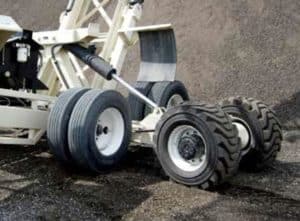

Superior TeleStacker Conveyor FD Axle

Features:

  • Hydraulically transfers stacker from inline to radial mode in seconds.
  • Invented by Superior in 1994 with more than 800 FD models built since.
  • Enclosed planetary drive is securely protected from damaging debris.
  • Walking beam suspension properly balances conveyor and load.
FD AXLE (TSFD) OPERATING SPECIFICATIONS 110’ 130’ 136’ * 140’ ** 150’ 158’ *
ft x in m ft x in m ft x in m ft x in m ft x in m ft x in m
Conveyor Length 110’ 39.6 130’ 39.6 136’ 41.5 140’ 42.2 150’ 42.2 158’ 48.0
Highest Extended Discharge Height 41’ 3” 13.4 44’  3” 13.4 44’ 13.4 46’ 3” 14.4 52’ 9” 14.4 48’ 10” 14.8
Lowest Extended Discharge Height 18’ 10” 4.9 16’  1” 4.9 18’ 6” 5.6 19’ 6” 5.9 19’ 6” 5.9 19’  6” 5.9
Highest Retracted Discharge Height 24’ 9” 7.9 26’  1” 7.9 27’ 1” 8.2 27’ 6” 8.4 30’ 10” 8.4 30’ 10” 9.4
Lowest Retracted Discharge Height 12’ 3.1 10’  4” 3.1 12’ 8” 3.8 12’ 1” 3.7 12’ 6” 3.7 12’ 4” 3.7
Anchor Pivot to Center of Axle 39’ 8” 15.0 49’ 15 55’ 4″ 16.9 51’ 10” 15.8 54’ 9” 15.8 70’ 11” 21.6

*Low profile model. ** Design optimized for container shipment.

XTP Swing Axle Configuration:

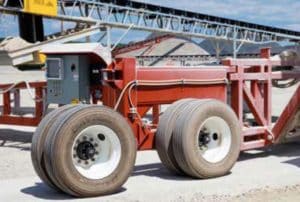

Superior TeleStacker Conveyor XTP Axle

Features:

  • Pull T-Handle to engage power travel; no chain drive.
  • Physically transfer from road to operation in minutes.
  • Concrete pad provides level runway.
  • Single link arm stays attached to machine; no handling multiple linkages.
XTP SWING AXLE (TSSA) OPERATING SPECIFICATIONS 130’ 150’ 170’ 185’ ** 190’ 210’ *
ft x in m ft x in m ft x in m ft x in m ft x in m ft x in m
Conveyor Length 130′ 39.6 150’ 0” 45.7 170’ 51.8 185’ 56.2 190’ 57.9 210’ 64.0
Highest Extended Discharge Height 44’ 4” 13.5 52’ 6” 16.0 61’ 18.5 64’ 11” 19.8 67’ 8” 20.5 71’ 8” 21.8
Lowest Extended Discharge Height 14’ 2” 4.3 15’ 10” 4.8 14’ 11” 4.5 15’ 9” 4.8 16’ 1” 5.0 16’ 11” 5.2
Highest Retracted Discharge Height 26’ 5” 8 31’ 3” 9.5 38’ 6” 11.0 38’ 4” 11.7 38’ 7” 11.0 41’ 2” 12.5
Lowest Retracted Discharge Height 9’ 7” 2.9 10’ 9” 3.2 10’ 8” 3.2 10’ 10” 3.3 10’ 9” 3.2 11’ 4” 3.5
Anchor Pivot to Center of Axle 48’ 6” 14.5 56’ 4” 17.0 73’ 10” 22.5 73’ 5” 22.4 73’ 10” 22.5 81’ 11” 25.0

* Contact Superior Industries for additional shipping information. ** Design optimized for container shipment

Pit Portable Axle Configuration:

Features:

  • Both made from heavy duty fabricated steel.
  • Both designed for highest capacity, highest tonnage applications.
  • Both designed for towing within the quarry.

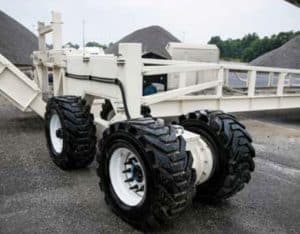

Superior TeleStacker Conveyor Pit Portable Axle

Maximum Stockpile Capacities (Manual Piles)*

Conveyor Length (ft) Stockpile Height Conical 90˚ 180˚ 270˚
ft x in m tons metric tons tons metric tons tons metric tons tons metric tons
110 TSFD 39’ -0” 11.8 6,600 6,000 26,600 24,100 46,500 42,200 66,500 60,300
130 TSFD 42’ -0” 12.8 8,400 7,600 36,800 33,400 65,200 59,100 93,600 84,900
130 TSSA 45’ -6” 13.8 9,000 8,200 37,400 34,000 65,800 59,600 94,200 85,500
136 TSFD-LP 41’ -6” 12.6 9,300 8,400 40,600 36,800 71,900 65,200 103,200 93,600
140 TSFD 45’ -3” 13.8 10,315 9,360 42,330 38,400 74,340 67,440 106,440 96,560
150 TSFD 50’ -0” 15.2 12,600 11,400 55,300 50,200 98,100 89,000 140,800 127,700
150 TSSA 50’ -0” 15.2 12,400 11,200 54,100 49,000 95,900 87,000 137,700 124,900
158 TSFD-LP 47′-0″ 14.3 13,100 11,900 55,200 50,100 97,500 88,400 139,700 126,800
170 TSSA 58’ -0” 17.6 17,500 15,900 75,800 68,800 134,000 121,600 192,300 174,500
185 TSSA 63’ -3” 19.3 26,630 24,160 109,000 98,880 191,360 173,600 273,725 248,320
190 TSSA 66’ -0” 20.1 25,300 23,000 111,100 100,800 196,800 178,500 282,600 256,400
210 TSPP 70’ -3” 21.4 36,825 28,154 156,050 119,308 275,275 210,462 395,500 302,381

* Assumptions based on material which has a 37° angle of repose and 100 PCF (1.6 t/m3) material density.
